Museum-Grade Ultra-Transparent Acrylic Display Case HM-1858

Museum-Grade Ultra-Transparent Acrylic Display Case – Premium Conservation & Security Solution

Professional Overview

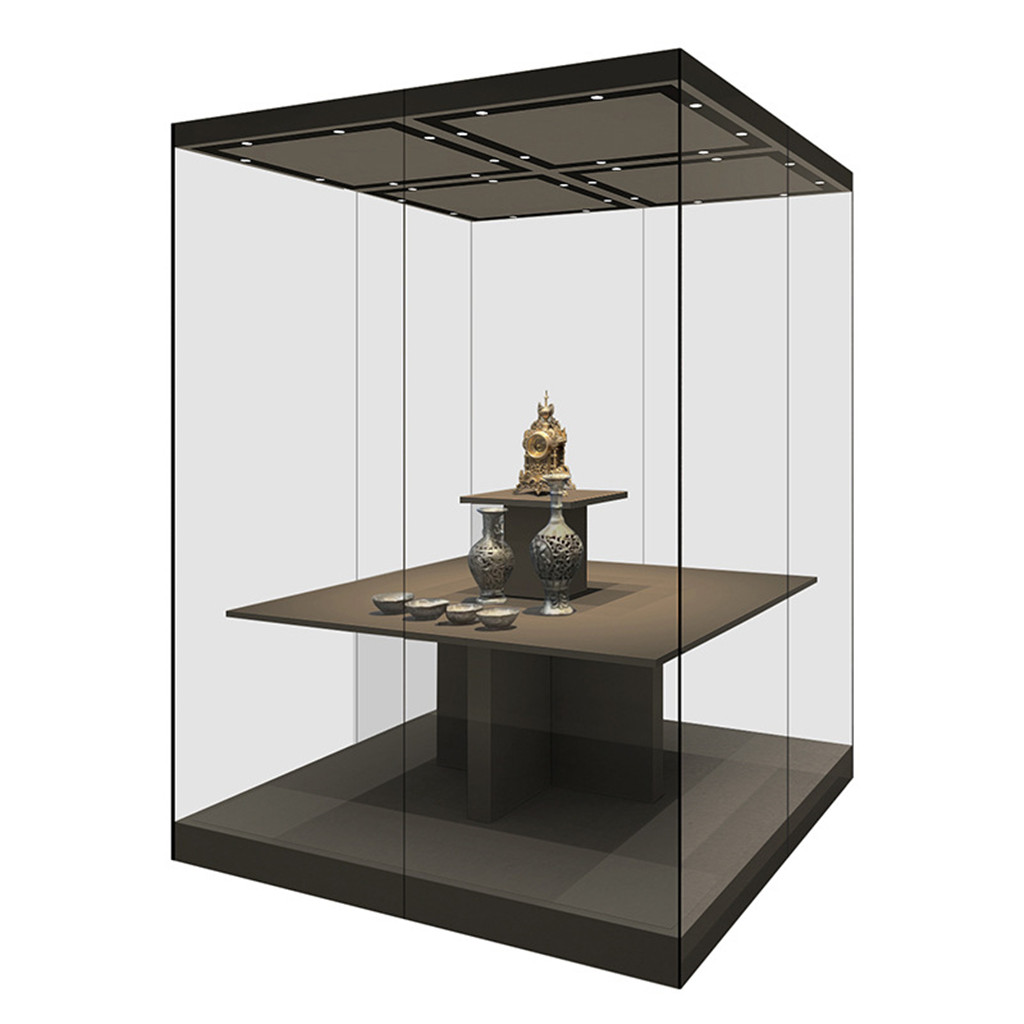

Our ultra-transparent museum-grade acrylic display case represents the pinnacle of artifact preservation technology. Designed for high-value collections, this 160×160×220cm (W×D×H) showcase combines optical clarity with advanced security features, meeting stringent conservation standards while offering flexible customization options including fiber optic lighting, climate control systems, and integrated security alarms.

Key Features & Technical Specifications

1. Ultra-Transparent Acrylic Construction

• Material: 15mm UV-stabilized acrylic (PMMA) with >93% light transmission (superior to glass)

• Optical Quality: Low-iron formula eliminates greenish tint, achieving “crystal-clear” visibility

• Surface Treatment: Anti-static coating to repel dust + anti-scratch hardening layer (7H hardness)

2. Structural Integrity & Security

• Frame System:

  • Rectangular steel tube (40×20mm) welded framework with powder-coated finish (RAL 9010)

  • Custom U-channel system for seamless acrylic panel insertion (vibration-proof design)

  • Reinforced alloy aluminum edges (3mm thickness) with soft silicone gaskets to prevent micro-abrasions

• Locking Mechanism:

  • Museum-grade dual-point deadbolt locks (keyed alike, compliant with DIN 18251)

  • Optional biometric access or RFID locking system (+$420)

3. Advanced Access & Panel System

• Side-Opening Mechanism:

  • Gas-assisted hydraulic hinges for smooth 90° door operation (15kg lifting capacity)

  • Magnetic door seals maintain consistent microclimate (IP54 rated)

• Removable Panels:

  • Tool-free quick-release fasteners for emergency artifact access

4. Conservation-Focused Lighting

• Standard Cold LED Lighting:

  • 6500K color temperature (CRI>95)

  • Zero UV/IR emission (CIE S 020/E:2011 compliant)

  • Dimmable 10-100% via touch control panel

• Optional Fiber Optic System:

  • 50μm fiber strands with focusable spotlights (+$780)

  • Heat-free illumination (lux adjustable 50-300)

5. Customizable Add-Ons

• Climate Control Module:

  • Active humidity regulation (30-60% RH ±2%) with silent compressor (+$1,200)

  • Integrated particulate filter (PM0.3)

• Security Upgrades:

  • Vibration sensors + 3G alarm transmission (+$350)

  • Breakage detection via capacitive monitoring (+$290)

Technical Specifications Table

Manufacturing Excellence

• Precision Fabrication:

  • CNC laser cutting (tolerance ±0.15mm)

  • Robotic welding (argon-shielded TIG process)

  • Automated bending (3-axis press brake)

• Surface Finishing:

  • Electrostatic spray coating (150μm thickness)

  • Class 100 cleanroom assembly

Why Choose This Display Case?

For Conservators:

✔ Passive Preservation:

• <10 ppm/year off-gassing (tested per ISO 16000-6)

• Oxygen-scavenging silica gel compartments (optional)

✔ Active Protection:

• Real-time environment monitoring (Wi-Fi enabled)

For Museum Directors:

✔ Aesthetic Versatility:

• Frameless floating display option available

• Custom bronze/black aluminum finishes

✔ Cost Efficiency:

• 40% lighter than glass equivalents → lower shipping/installation costs

• Modular design allows future upgrades

Installation & Service

• Global White-Glove Installation:

  • On-site assembly by certified technicians

  • Vibration-free leveling system

• Maintenance Package:

  • Annual gasket replacement program

  • Acrylic polishing service (+$180/year)

Ordering Information

• Lead Time: 6-8 weeks (standard), 4 weeks (rush +15%)

• Shipping:

  • Crated via air-ride truck (USA/EU)

  • Museum-spec shock indicators included

• Warranty:

  • 10 years on frame, 5 years on acrylic

Comparative Advantage

Final Recommendation

This showcase is ideal for:

• Class 1 artifacts (ISO 11799)

• Sensitive organic materials (textiles, parchment)

• High-theft-risk exhibits

Request a quote today for a free 3D layout proposal tailored to your collection!
